Indication lights for control panels, communication equipment or office automation equipment. These are high quality LEDs (Light Emitting Diode) used in automobiles, mobile phones, control panels, aircrafts and anywhere else requiring indication light.

Lamptech imports these Multi-Chip LEDs directly from JAPAN. These are high quality, made to order and customized to your specific needs. These LEDs, unless in-stock have a 6 to 8 week lead time.

Minimum Order Quantity = 100 pieces
Pricing for Based Type = $5.50 per bulb (+$0.25 for With-Bridge) (+$0.25 for Ultra Color)
Pricing for Wire Terminal = $4.50 per bulb (+$0.25 for With-Bridge) (+$0.25 for Ultra Color)



Build Custom       Build Custom
Based Type LED   or   Wire Terminal LED
hos-flange.png       hos-wire.png

Click links above to go to product page now.
Links also available at bottom of this page.





How to Create your Customized Part Number

# of LEDs   Base Type Circuit Type Color   Voltage






Base Type Layout

6 Base - O or B - Color - 6-120
Number
of LED Chips
(6 = Default)		 Base Type   Circuit Type   Color Choice   Voltage
(Pos or Neg)


Base Type Example #1
6MF-O-R-28

6 MF - O - R - 28
Number
of Chips		 Flange
Base		   Open Circuit
(Standard)		   Red
Color		   Voltage
(Positive)


Base Type Example #2
6MG-B-Y-28N

6 MG - B - Y - 28N
Number
of Chips		 Groove
Base		   Bridge Circuit   Yellow
Color		   Voltage
(Negative)


Wire Terminal Layout

6 WT - O or B - Color - SERIES or 3P
Number
of Chips		 Wire Terminal   Open (Standard)
or
Bridge Circuit		   Color Choice   Series (Standard)
or
3 Parallel

Instead of Voltage, you must choose between a Series or 3-Parallel circuit

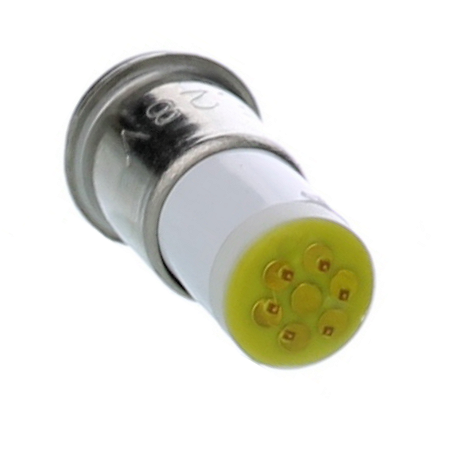

step1.png hos-land2.png 6-Chip LED
Design





step2.png 10 Base Types

hos-mf.png hos-mg.png hos-ba7s.png hos-mb.png hos-bp.png
MF MG BA7S MB (BA9S) BP
Midget Flange Midget Groove Bayonet
Single Contact
7mm Diameter		 Miniature Bayonet
Single Contact
9mm Diameter		 Bi-Pin

hos-e10.png hos-wb.png hos-tele.png   hos-wt-o.png hos-wt-b.png
E10 WB T6.8 WT WT
Screw Base Wedge Base
T1.75 (5mm)		 Telephone
Slide Base		 Wire Terminal
Open Circuit		 Wire Terminal
With-Bridge





step3.png Choose Between

Open Circuit (default)
or
Bridge Circuit

LEDs With-Bridge Circuits
With-Bridge lights up by full wave when operated in AC power.
No need to care about polarity of socket terminal when DC power is applied.

Circuit Diagram (with Bridge)
hos-circuit2.png           Note: With-Bridge is only
available in the following
Voltages: 24, 28, 48, 60, 120

ADD $0.25 PER BULB
FOR BRIDGE OPTION
  hos-ledchip.gif   LED Chip
  hos-rectifier.gif   Rectifier





step4.png   Standard Colors
≈ 30-40 mcd


R O A Y G B M(R/G)
Red Orange Amber Yellow Green Blue Red-Green Mix
(Warm White)

  Note: A pure-white color is not available. Choose M(R/G), a Mix of Red and Green which produces a Warm White color.


  Ultra Colors
≈ 160-180 mcd


UR UO UA UY UG UB
Ultra Red Ultra Orange Ultra Amber Ultra Yellow Ultra Green Ultra Blue

  ADD $0.25 PER BULB FOR ULTRA COLOR OPTION






step5.png   Available Voltages (V)

  5, 6, 12, 14, 24, 28, 48, 60, 120

  Positive (default)
or
Negative


  Choose Between Positive or Negative
By default all LEDs will be build as Positive.
So you must specify if you require your LEDs to be Negative.

Bridged Circuit Option: if you chose this option, your LED will be Bi-Polar,
you may leave the voltage option as default
